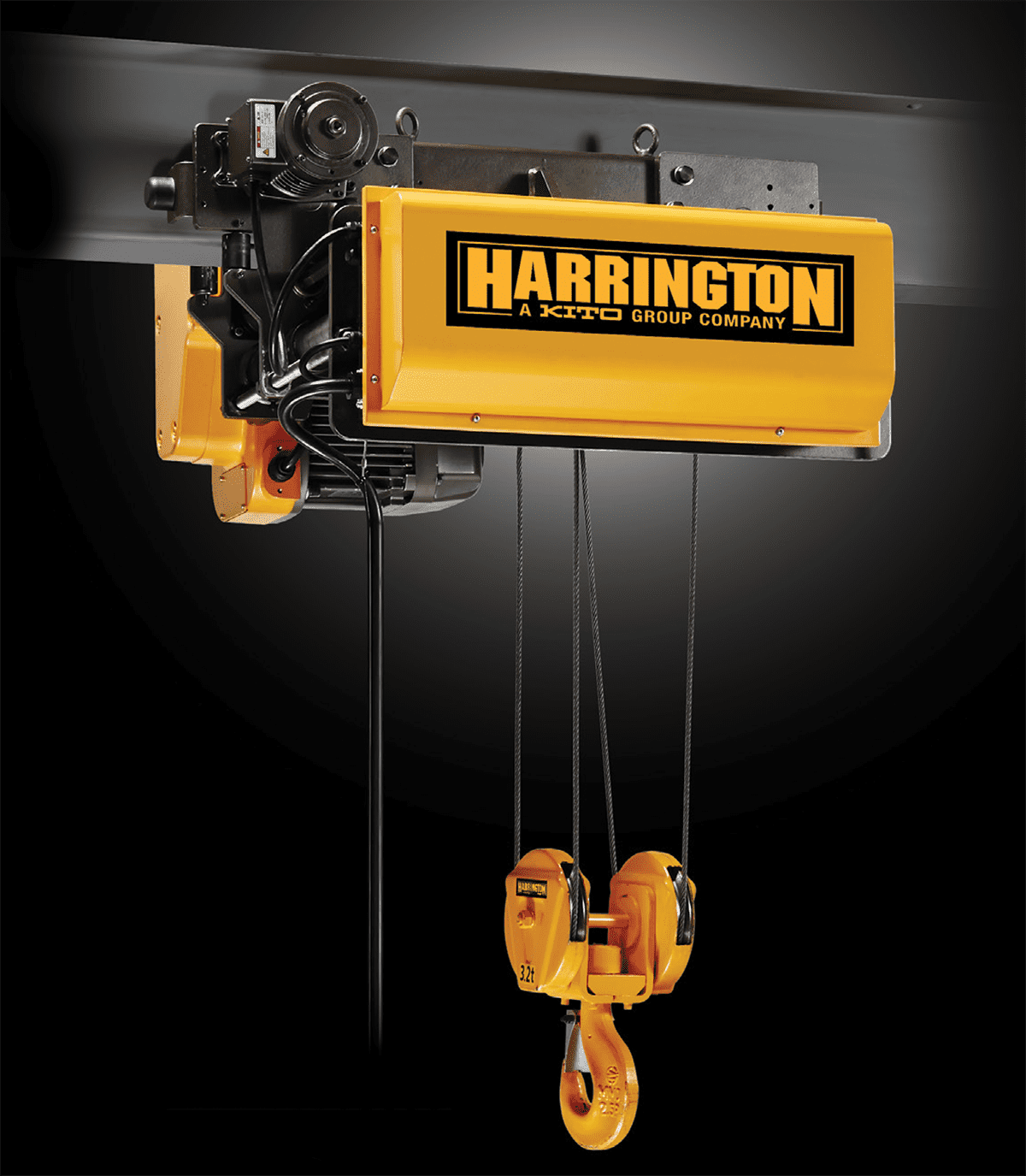

RY WIRE ROPE TROLLEY HOISTS
Designed for Safety, Reliability and Performance
Harrington’s RY Series wire rope hoists are designed for safety, reliability and performance. These ultra-low headroom trolley hoists have an H4 duty rating for high demand applications and comes standard with VFD controls for ultimate lifting and lowering accuracy.
CAPACITY
- 3-10 Ton
COMPLIANCE
- NFPA 70 “National Electric Code”
- ASME B30.16, “Safety Standard – Overhead Hoists (Underhung)”
- ASME HST-4, “Performance Standard for Overhead Electric Wire Rope Hoists”
- RY hoists in standard configurations (including certain options) are certified to UL 1340 “Standard for Hoist”, CSA 22.2 No. 33
ROPE SYSTEM
- Premium Wire Rope (IWRC coated core)
- Full 360 ̊ rope guide
- Deep grooved rope drum
VFD (Variable Frequency Drive)
- Soft start/stop minimizes load swing
- High and low speed adjustability
- Maximum speed ratio of 6:1
- No-load high speed function
STANDARD VOLTAGE
- (208-230)-3-50/60
- 460-3-50/60
CONTROL VOLTAGE
- 110V
BRAKE
- Pull-rotor motor brake 3 & 5 Ton; Magnetic disc brake 7.5 & 10 Ton
- 5-year warranty
MOTOR
- Totally enclosed fan cooled (TEFC)
- Class F insulation and ribbed frame for maximum cooling and durability
- IP55 rating
OVERLOAD PROTECTION
- Electronic overload limiter

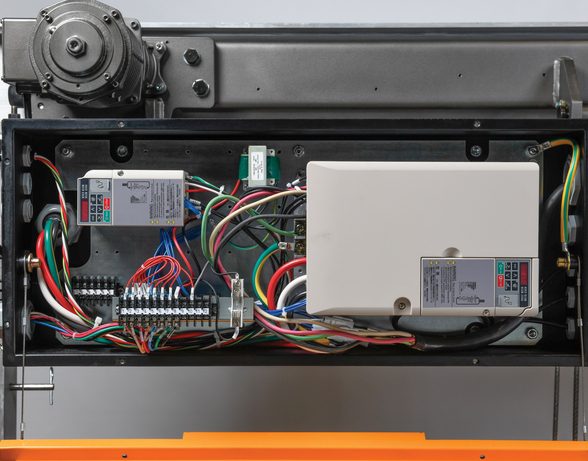

VFD Control
The variable frequency drive provides a soft start/stop to minimize load swing, with adjustable high and low speeds.

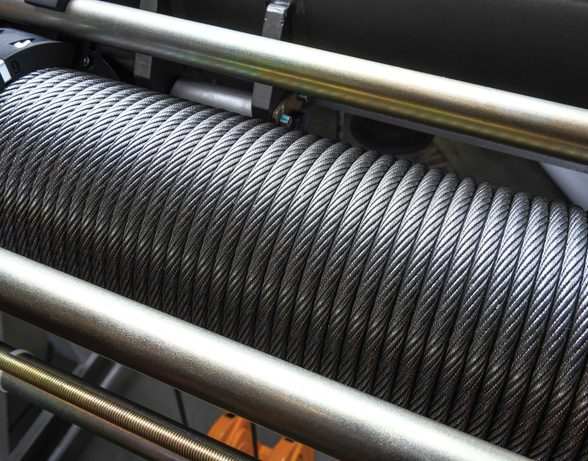

Premium Wire Rope
Harrington’s premium wire rope (IWRC, coated core) provides high resistance to fatigue and wear.

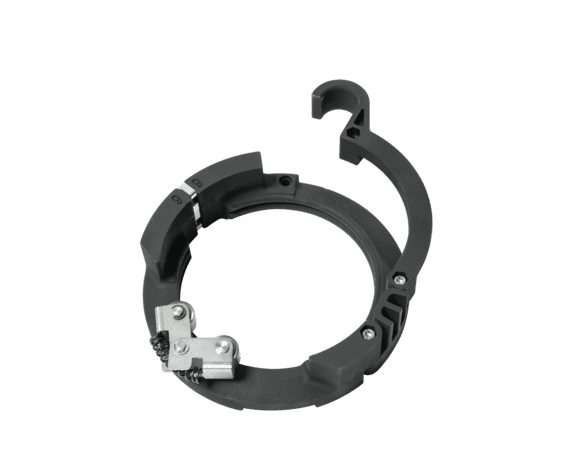

Full 360° Rope Guide
Made of high strength polymer for durability, our rope guide keeps the rope securely in the groove on the drum.

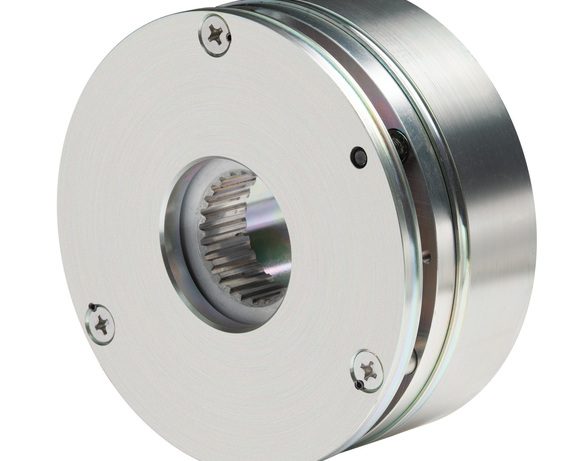

High Performance Motor Brakes
The pull-rotor motor brake on 3 & 5 Ton models, and a magnetic disc brake on 7.5 and 10 Ton models. Both brakes provide reliable and safe operation and exceptional durability.
