Workstation Cranes and Monorails
Overhead cranes or workstation cranes are used in multiple industries like manufacturing, automotive, aviation, farming, and numerous other industries. for the purposes of heavy lifting and moving heavy loads across distances in a workspace. They are also commonly referred to by several other names including bridge cranes, EOT cranes and track cranes among others. Monorail cranes are ideal for transporting material for painting, coating, blasting and necropsy labs. These systems are mostly used to eliminate worker strain, boost efficiency, protect product, reduce downtime and improve workflow.
Work station bridge cranes and monorails can be used individually or can be readily adapted for applications that are more sophisticated by the addition of extra monorail tracks, curves, and transfers that can be easily configured into a total system. Gorbel systems meet all OSHA standards for material handling: https://www.osha.gov/laws-regs/regulations/standardnumber/1910/1910.179
Why Gorbel’s Workstation, Jib, and Gantry Cranes?
Gorbel Work Station Cranes guarantee increased productivity with the ability to span up to 30 ft. and lift capacities from 150 lbs. up to 2 ton.
From free standing to floor-supported to wall bracket configurations, Gorbel I-beam Jib Cranes are synonymous with quality, safety and performance, with capacities up to 10,000 lbs. Gorbel’s Fixed and Adjustable Height Steel Gantry Cranes provide an economical way to lift materials anywhere in a facility. The casters enable you to move the gantry around your work area.
People, Productivity, and Profits.
Gorbel Protects Them All.
Choose Gorbel’s 40+ years of experience in ergonomic lifting and material handling, backed by countless testimonials from satisfied dealers and customers, to meet your facility’s needs.
Gorbel® Work Station Cranes are a proven way to improve productivity, increase quality, and provide a safer work environment. Both the aluminum and steel Gorbel Workstation Crane Systems utilize enclosed track that is high in strength and low in weight, giving you easy movement and long life..

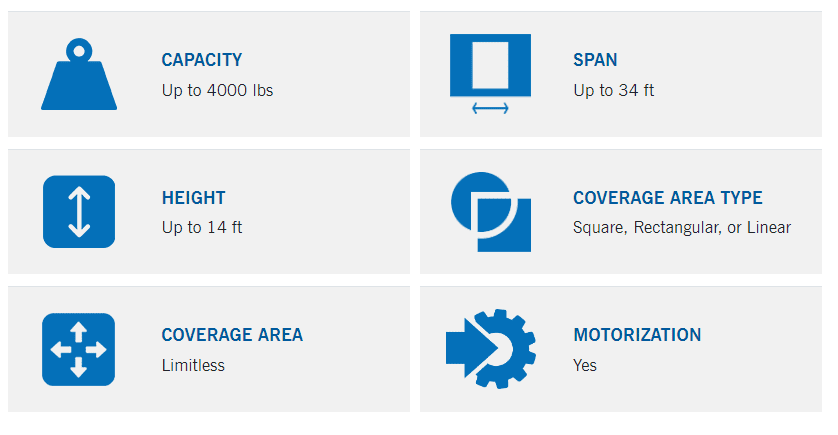

With the ability to span up to 30 ft. and lift capacities between 150 and 4000 lbs., Gorbel’s line of ergonomic crane products guarantees increased productivity. Depending on your needs, Gorbel has the workstation cranes that are sure to handle any project. Have a need for some type of customized material handling solution? Call us, (765) 763-8985 and we can design a solution to best fit your application.

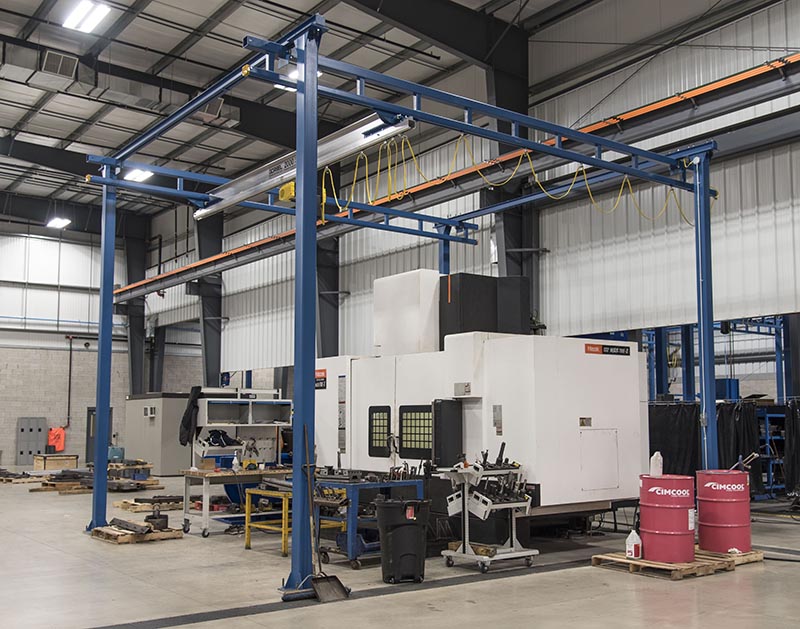

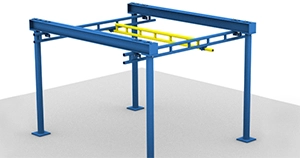

Free Standing Bridge Cranes
A free standing bridge crane is intended to be bolted to the floor and to support loads that will be moved vertically and horizontally. One worker can manipulate the load along a series of tracks, including curves and monorails, inside a closed system. This design works well in an area with limited headroom and/or a ceiling that is not strong enough to support a mounted bridge crane.

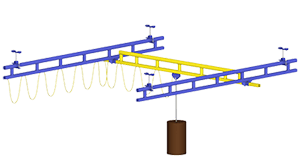

Ceiling Mounted Bridge Cranes
A ceiling mounted bridge crane works well in a building with a concrete, steel, or aluminum frame covering. This system will sustain a maximum load of 4,000 pounds. When you choose the overhead design, there are no work areas where workers trip over or bump into workstations. The loads move overhead, which also easily accommodates more pedestrian traffic and forklift operations.

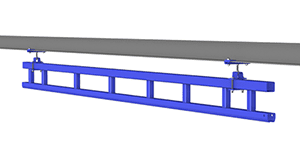

Monorails
An assembly line may involve the movement of a partly assembled product along many tracks within a closed system. Sometimes, it’s necessary to move the parts assembly along a single linear path for many feet. A monorail track can be easily integrated with extra track, curves, interlocks, and switches.

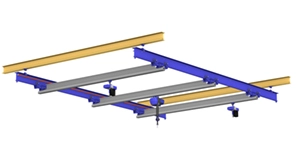

Hybrid Work Station Crane
Hybrid Cranes utilize the strength and longevity of patented track with the light weight advantages of Gorbel®’s aluminum enclosed track bridges. Utilizing these two features together allows for greater installation flexibility to meet longer support centers.
Enclosed Track Jib Cranes
Enclosed Track Jib Cranes provide excellent coverage in circular areas not efficiently served by a main crane. They’re ideal for supporting tool balancers, air balancers, hoists, vacuum lifters and welding wire feeders. They can handle up to 200° rotation when column or wall mounted, and up to 360° rotation when floor mounted.
Enclosed Track Jib Cranes can provide a major boost to productivity in your plant or warehouse. However, many people are unaware of the many safety-related benefits they can bring to your workplace. From reducing injuries to promoting a smooth training experience, enclosed track jib cranes can help you in your quest to establish a culture of safety within your business.
Why Gorbel’s Enclosed Track Jibs?
Gorbel® Enclosed Track Jib Cranes are easier to move and position than traditional I-beam jibs. The cold-formed, high-strength enclosed track design keeps rolling surfaces clean, contributing to easier movement and longer life. The track’s low weight-per-foot reduces the dead weight of the boom. The 2° taper in the lower running flange increases wheel life and allows for smooth rolling of the trolleys.

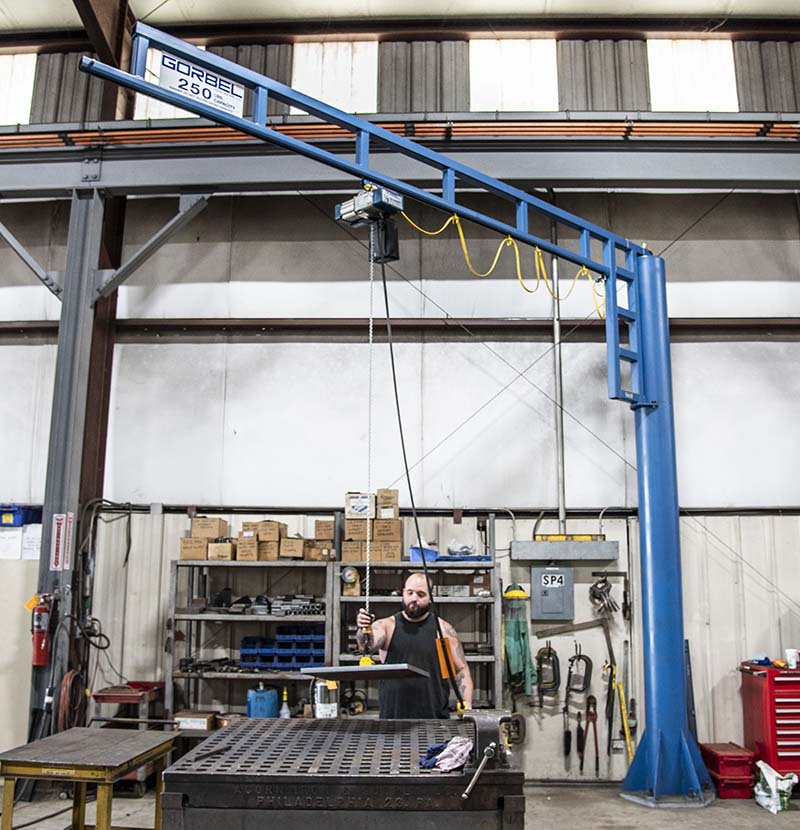

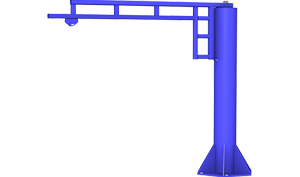

Free Standing Workstation Jib Crane
The WSJ360 Free Standing Work Station Jib Crane can be bolted directly to your existing floor without adding special foundations. It offers 360° of rotation and is available in standard capacities to 1000 lb. and spans up to 16’.

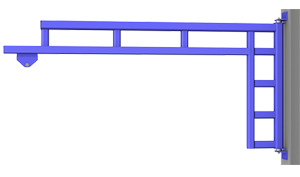

Wall Mounted Workstation Jib Crane
The WSJ200 Wall or Column Mounted Work Station Jib Crane uses tapered roller bearings at the pivot points for unsurpassed ease of rotation. It offers 200° of rotation and is available in standard capacities to 1000 lb. and spans up to 16’.

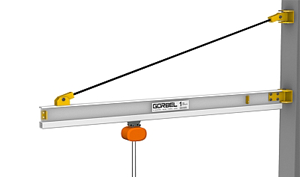

Aluminum Tie Rod Jib Crane
The AL100 Wall Bracket Work Station Jib Crane uses Gorbel’s patented light weight, high-strength extruded aluminum enclosed track for its boom. It offers 200° of rotation and is available in standard capacities to 2000 lb. with spans up to 20’.

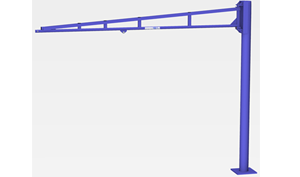

Free Standing Tool Solutions Jib Crane
Our Tool Solution Jib Cranes are a durable, lightweight option for applications with suspended tooling or light-duty lifting. They are available in capacities of 50 or 150 lbs.

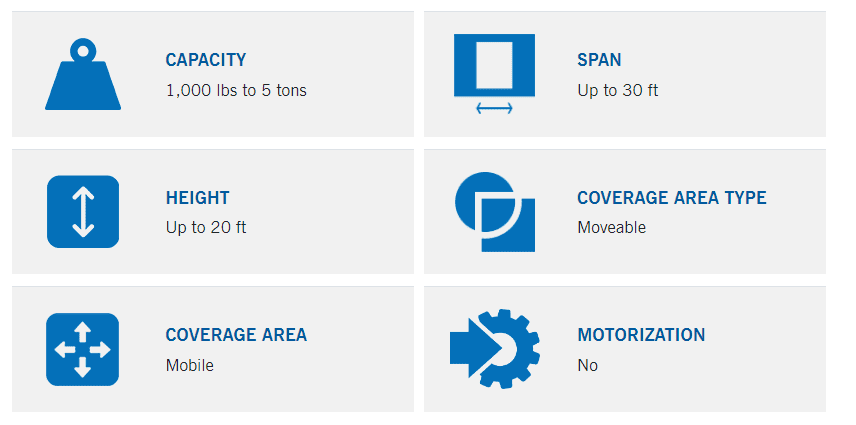

Gantry Cranes
Gantry Cranes provide an economical way to lift materials anywhere in a facility. This is a more cost-effective lifting solution for areas of infrequent lifts than a more expensive permanent structure. Gantry cranes have what it takes to maximize efficiency while saving your time.
The Gantry Cranes’ heavy duty end frame design with square tubing uprights, knee braces and channel base on the adjustable height gantry cranes and square tubing uprights and bases on the fixed gantry cranes provides stable lifting and smooth movement in and out of your lifting environment.
Why Gorbel’s Gantry Cranes?
Gantry Cranes can be used to load and unload items in both indoor and outdoor settings and then stored out of the way until needed. Gorbel’s aluminum gantry cranes are lightweight and collapsible for even easier storage. The non-marking durable phenolic casters on our Gantry Cranes provide low rolling resistance for easy movement. The casters enable you to move the gantry around your work area. They also roll smoothly, even over rough floor surfaces, and can withstand water, oil and most other chemicals. The bolted beam to upright connection ensures the beam does not dislodge.

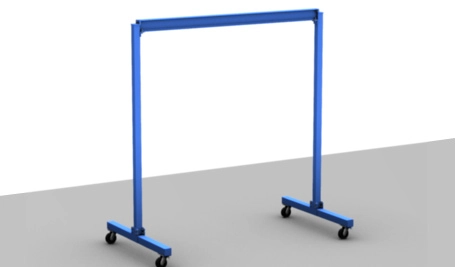

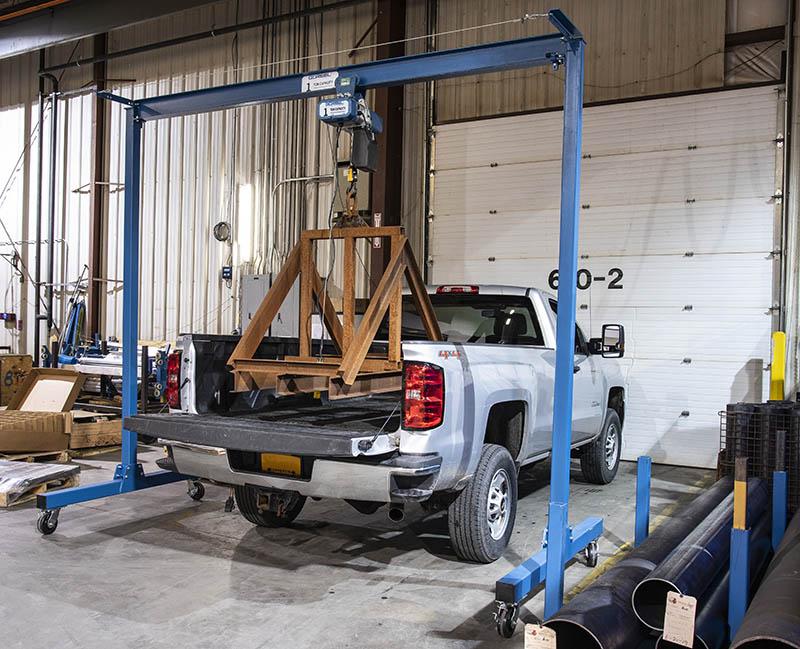

Fixed Height Gantry Crane
Gorbel®’s Fixed Height Gantry Cranes feature a new design that allows them to be moved safety with a suspended load. Available in spans up to 30′ and capacities up to 5 ton.

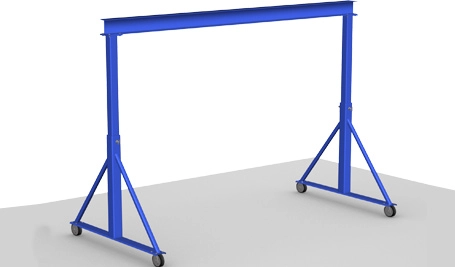

Adjustable Height Gantry Crane
The Adjustable Height Gantry Crane provides the most flexible lifting solution of any style gantry crane. It can be easily moved and easily adjusted to provide different lifting heights. Available in spans up to 30’ and capacities to 5 ton.

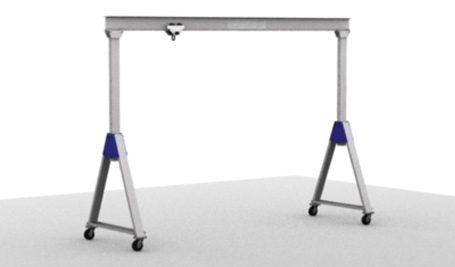

Aluminum Gantry Crane
The Aluminum Gantry Crane is made from lightweight extruded aluminum track. They have an adjustable span and height and are collapsible for easy storage when not in use. Available in spans up to 20’ and capacities to 2 ton.
