WIRE ROPE HOISTS
SPACEMASTER® SX WIRE ROPE HOIST
R&M’s Spacemaster SX wire rope hoist features a large drum diameter that creates near true vertical lift, and its frame design allows closer end approaches than other hoists on the market. Standard electric wire rope hoist configurations include normal headroom, low headroom and double girder designs.
Applications
Designed to maximize dimensional envelope and operational efficiency, the wide capacity range of this hoist is ideal for applications across industries. The Spacemaster SX wire rope hoist can be configured to your precise facility needs, from building headroom and workflow needs to environmental considerations.
Standard Features
- 1/2 – 80 ton (500 – 80,000 kg) capacities
- Lifts at 13 – 320 ft (4 – 100 m)
- Lifting speed range 10/1.5 – 62/10 fpm (3/0.5 – 19/3 mpm)
- 208, 230, 460, 575/3/60 or 380/3/50 power supply
- Single-reeved or double-reeved
- Load monitoring
- 2-speed hoisting and inverter-controlled trolley motions
- Lowest headrooms in the industry
SXL HEAVY LIFTING WINCH
SXL Heavy Lifting Winches
Heavy-duty lifting requires heavy-duty solutions. When you need a rugged hoist with high capacities and long lifts, the SXL open winch wire rope hoist is there to meet the most rigorous lifting demands.
Standard Features
- 10- 250 ton (10,000 – 250,000 kg) capacities
- CMAA/ASME or FEM/ISO duty ratings and CSA C/US certification
- Compact double girder trolley with double reeving for true vertical lifts
- Dual-trolley drives for powerful travel motion
- Motors with thermal protection and D.C. disk brake
- HoistMonitor® featuring overload protection and condition monitoring
- Rope overwrap protection
- Inverter control for all motions with closed-loop vector control for hoisting
Designed for You
The SXL open winch hoist is tailored to meet your specific requirements. The modular design of the hoists and trolleys allow a wide variety of application-specific designs, with all the functionality of a custom built-up hoist. Choose from an abundance of special features, such as outdoor protection and special temperature ranges, specialty hooks and provisions for below the hook devices, precision load and sway controls, maintenance platforms, extra long lifts, and extra durable hardened hoist drum and sheaves

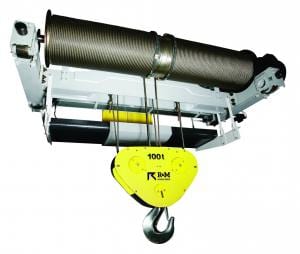

DXW HEAVY-DUTY WIRE ROPE HOIST
DXW Heavy-Duty Wire Rope Hoist
The DXW is tailored to meet your specific requirements. The modular design of the hoists and trolleys allow a wide variety of application-specific designs. Choose from an abundance of special features, such as outdoor protection and special temperature ranges, specialty hooks and provisions for below the hook devices, precision load and sway controls, maintenance platform, centralized lubrication for ease of maintenance and extra durable hardened hoist drum and sheaves.
Standard Features
- 6.3 – 160 ton (7000 – 160,000 kg) capacities
- Wide range of available lifts and lifting speeds
- Main power supply for 460V-3PH-60Hz, 575V-3PH-60Hz or 380-3PH-50Hz
- CMAA Class D trolley for heavy-duty operation
- Ambient temperatures 41°F – 113°F [5°C – 45°C]
- Extended run time with name plated 60 min. motors & class H insulation
- Inverter duty motors for all motions providing smooth operation and reduced load sway
- DC disc hoist motor brake with 200% braking torque
- CSA C/US rated
