AIR-POWERED HOISTS
The Hoist that Just Keeps Going
With 100% duty rating, fine-feathering controls, and reduced noise levels, there’s no question the TCK will meet all your production needs. For low headroom and fast lifting in demanding industrial settings, these hoists will far exceed workplace demands.
FEATURES:
CAPACITY
- 3 & 6 Ton
BODY
- High-strength cast-iron housing stands up to the toughest demands
- Powder coated finish
- Proven weather resistant in harsh environments
LOAD CHAIN
- Nickel plated, corrosion-resistant chain
- Resistant to corrosion, abrasion and wear
AIR REQUIREMENTS
- Air Supply: 60 – 90 psi
- Air Filtration: Maximum 5 micron air filter or finer required
- Air Inlet Port: 1″ NPT
- Air Supply Hose: Minimum Size 3/4″
- Air Lubrication: Minimum 10 – 15 drops of oil per minute (0.2 – 0.3 cc/min.)
OPERATION
- Pendant and cord control
- Outstanding control for fine feathering movements using a spring-loaded multi-vane motor design
- Comfortable noise levels during use
BRAKE
- Fail-safe self-adjusting disc brake
- Protected from harsh environments
MOTOR
- Spring-loaded multi-vane
- Variable speed control
OPERATING CONDITIONS
- Temperature range +14° – 140°F
OPTIONS
- Pendant or cord control
- Canvas or steel chain container
- Custom lift or pendant length
Environment Friendly Power
Our TCL Series lube free air hoists are able to operate without air supply lubrication, leaving the surrounding environment free of oil mist from the air exhaust. This hoist is recommended for use in any area where oil mist cannot be tolerated such as in food, chemical, or pharmaceutical industries.
FEATURES:
CAPACITY
- 1/4 – 6 Ton
LOAD CHAIN
- Nickel-plated
- Resistant to corrosion, abrasion and wear
FEATURES 1/4 – 1 TON
- Extremely compact & lightweight
- Cast aluminum body allows for easy operation, transportation and storage
- External speed adjustment screw doesn’t need special tools to set specific speeds
- Adjustable lifting and lowering speeds increases production capabilities
- Heavy-duty disc motor brake system for reliable load support
FEATURES 3 – 6 TON
- Adjustable overload limiter detects overload automatically and blocks air flow for lifting
- Cast iron housing for strength and durability
- Powder coated finish proven weather resistant in harsh environments
- Internal disc brake protected from harsh environments
AIR REQUIREMENTS
- Air Supply: 60 – 90 psi
- Air Filtration: Maximum 5 micron air filter or finer required
- Air Inlet Port: 1/4-1 Tons — 1/2″ NPT; 3-6 Tons — 1″ NPT
- Air Supply Hose Minimum Size: 1/4-1 Tons — 1/2″; 3-6 Tons — 3/4″
OPERATION
- Pendant and cord control
- Outstanding control for fine feathering movements using a spring-loaded multi-vane motor design
- Comfortable noise levels during use
- Lubrication free
- Unlimited duty cycle
MOTOR
- Spring-loaded multi-vane for fine feathering control
OPERATING CONDITIONS
- Temperature range +14° – 140°F
OPTIONS
- Pendant or cord control
- Canvas or steel chain container
- Custom lift or pendant length
Large Capacity Air Hoists Handle the Toughest Jobs
These high-performance hoists have all of the power required for lifting very heavy material and are the ideal choice for extreme applications including in mines, shipyards, heavy construction, rigging situations and the petrochemical industry.
FEATURES:
CAPACITY
- 10 & 25 Ton
BODY
- High-strength cast iron housing for proven weather resistance and durability in harsh environments
- Airtight for efficient use of air
AIR REQUIREMENTS
- Air Supply:170 – 220 cfm at 60 – 90 psi
- Air Lubrication: Minimum 10 – 15 drops of oil per minute (0.2 – 0.3 cc/min.)
- Air Filtration: Maximum 5 micron air filter or finer required
- Air Inlet Port: 1″ NPT
- Air Supply Hose Minimum Size: 1″
OPERATION
- Pendant or cord
- Provides outstanding control for fine feathering movements using a spring-loaded multi-vane motor design
- Comfortable noise levels
OPERATING CONDITIONS
- Temperature range +14° to 140ºF
- Humidity 85% or less
BRAKE
- Heavy-duty, self-adjusting brake
- Precise braking action
MOTOR
- Spring-loaded multi-vane design for fine feathering control
OVERLOAD PROTECTION
- Adjustable load limiter detects overload automatically and blocks air flow for lifting
- Standard upper & lower limit stops prevent over-travel of hook in either direction
OPTIONS
- Pendant or cord control
- Canvas or steel chain container
- Custom lift or pendant length
TCW LUBE FREE AND WASH DOWN HOIST
When your Product Needs to Remain Clean
Harrington’s TCW Series Lube Free Wash Down Air Hoists are designed for use in humid, limited corrosive and outdoor environments or where equipment must be washed off on a regular basis. These industrial, severe duty rated hoists are perfect for food processing, food handling and pharmaceutical industries.
FEATURES:
CAPACITY
- 1/2 & 1 Ton
BODY
- Cast aluminum body is compact and lightweight
- Unpainted
- Stainless steel and bright chromate coated components
- Gear box and chain lubricants comply with FDA standards
CONTROLS
- Available with pendant or cord control
- Very fine feathering movements, both up and down, even at low speeds
LOAD CHAIN
- Nickel-plated
- Resistant to corrosion, abrasion and wear
AIR REQUIREMENTS
- Air Supply Requirement: – 60 – 90 psi
- Air Filtration: – Maximum 5 micron air filter or finer required
- Air Inlet Port: – 1/2″ NPT
- Air Supply Hose Minimum Size: – 1/2″
OPERATION
- Pendant and cord control
- Outstanding control for fine feathering movements using a spring-loaded multi-vane motor design
- Comfortable noise levels during use
- Lubrication free
BRAKE
- Heavy-duty disc brake motor system
MOTOR
- Spring-loaded multi-vane for fine feathering control
OPERATING CONDITIONS
- Temperature range +14° – 140°F
OPTIONS
- Pendant or cord control
- Canvas or steel chain container
- Stainless steel load chain
- Custom lift or pendant length
No Lightweight in Performance
Harrington’s AH Mini Cat air chain hoists offer an extremely lightweight, small body design suitable for on-site jobs, workstations and assembly line applications. Don’t be fooled by its small size – the Mini Cat is no lightweight in performance, only in dimensions.
FEATURES:
CAPACITY
- 250 – 500 lb
BODY
- Lightweight body allows for easy transportation
- Airtight hoist for efficient use of air
LOAD CHAIN
- Ultra-strong high performance nickel-plated load chain
- Resistant to corrosion, abrasion and wear
AIR REQUIREMENTS
- Air Supply: 19 – 34 cfm at 60 – 90 psi
- Air Lubrication: Minimum 10 to 15 drops of oil per minute (0.2 – 0.3 cc/min.)
- Air Filtration: Maximum 5 micron air filter or finer required
- Air Inlet Port: 3/8″ NPT
- Air Supply Hose Minimum Size: 3/8″
OPERATION
- Pendant or cord control
- Extremely fast lifting for applications where speed is critical
- Comfortable noise levels during use
BRAKE
- Disc motor brake system for reliable load support
MOTOR
- Spring-loaded multi-vane motor
OPERATING CONDITIONS
- Temperature Range +14° – 140°F
OPTIONS
- ET mini trolley
- Pendant or cord control
- Plastic chain container
Easily Transport Medium to Heavy Loads
Our MCL air trolley is the solution when you need to move your load to another location. This trolley pairs with our TCL Lube free air hoist giving you the mobility you need.
FEATURES:
CAPACITY
- 1/4 – 6 Ton
OPERATION
- Pendant control
- Lubrication free
- Trolley muffler produces low noise levels
OPERATING CONDITIONS
- Temperature range +14° to 140°F
- Humidity 85% or less
AIR REQUIREMENTS
- Air Supply: 53 cfm at 60 – 90 psi
- Air Lubrication: Minimum 10 to 15 drops of oil per minute (0.2 – 0.3 cc/min.)
- Air Filtration: Maximum 5 micron air filter or finer required
- Air Inlet Port: 3/4″ NPT
- Air Supply Hose Minimum Size: 1/4 – 2 Ton 1/2″; 3 – 6 Ton 3/4″
FEATURES
- Drop stops & rubber bumpers to ensure safe operation
- Side guide rollers provide additional stability and smooth travel
- Versatile wheels fit flat or tapered beam flange
- 4 button pendant and cord set for control of TCL and MCL combination
OPTIONS
- Longer pendant lengths
- Extended flange ranges
- Filter/regulator/lubricator kits
When you Have a Demanding Job, Demand a TCRM
TCRM air powered trolley hoists have the power you can count on and are the ideal choice for transporting medium to heavy loads in construction and foundry applications.
FEATURES:
CAPACITY
- 1/4 – 2 Ton
BODY
- High strength cast iron housing proven weather resistant and durable in harsh environments
- Airtight hoist results in efficient use of air
OPERATION
- Pendant Control
- Comfortable noise levels
OPERATING CONDITIONS
- Temperature range +14° to 140°F
- Humidity 85% or less
AIR REQUIREMENTS
- Air Supply: 53 cfm at 60 – 90 psi
- Air Lubrication: Minimum 10 to 15 drops of oil per minute (0.2 – 0.3 cc/min.)
- Air Filtration: Maximum 5 micron air filter or finer required
- Air Inlet Port: 3/4″ NPT
- Air Supply Hose Minimum Size: 1/2″
MOTOR
- Spring-loaded vane motor and pilot air control provide extremely fine feathering ability
BRAKE
- Enclosed heavy-duty disc brake provides reliable braking action
OVERLOAD PROTECTION
- Adjustable load limiter detects overload automatically and blocks air flow for lifting
- Standard upper & lower limit stops prevent over-travel of hook in either direction
TROLLEY FEATURES
- Drop stops & rubber bumpers to ensure safe operation
- Side guide rollers provide additional stability and smooth travel
- Versatile wheels fit flat or tapered beam flange
OPTIONS
- Longer lift or pendant lengths
Work Smart, Not Hard
Our MCR air powered trolley paired with ouir TCK air hoist make the perfect team for transporting medium to heavy loads in construction and foundry applications.
FEATURES:
CAPACITY
- 3 & 6 Ton
BODY
- Cast iron housing for strength and durability
- Powder coated finish proven weather resistant in harsh environments
LOAD CHAIN
- Nickel-plated load chain
- Resistant to corrosion, abrasion and wear
OPERATION
- Pendant control
- Unlimited duty cycle for continuous operation
- Trolley muffler produces low noise levels for operator comfort
OPERATING CONDITIONS
- Temperature range +14° to 140°F
- Humidity 85% or less
AIR REQUIREMENTS
- Air Supply: 53 cfm at 60 – 90 psi
- Air Filtration: Maximum 5 micron air filter or finer required
- Air Inlet Port: 3/4″ NPT
- Air Supply Hose Minimum Size: 3/4″
- Air Lubrication: Minimum 10 to 15 drops of oil per minute (0.2 – 0.3 cc/min.)
MOTOR
- Spring-loaded multi-vane motor design permits smooth operation
BRAKE
- Internal disc brake protected from harsh environments
TROLLEY FEATURES
- Drop stops
- Rubber bumpers
- Side guide rollers
- Versatile Wheels
OPTIONS
- Longer lift or pendant lengths
A Perfect Pair
For added mobility, add Harrington’s MCL air powered trolley to our TCL lube free hoists to easily transport medium to heavy loads.
FEATURES:
CAPACITY
- 1/4 – 6 Ton
LOAD CHAIN
- Nickel-plated resistant to corrosion abrasion and wear
FEATURES 1/4 – 1 TON
- Extremely compact & lightweight
- Cast aluminum body allows for easy operation, transportation and storage
- External speed adjustment screw doesn’t need specific tools to set specific speeds
- Adjustable lifting and lowering speeds increases production capabilities
- Heavy-duty disc motor brake system for reliable load support
FEATURES 3 – 6 TON
- Cast iron housing for strength and durability
- Powder coated finish proven weather resistant in harsh environments
- Internal disc brake protected from harsh environments
AIR REQUIREMENTS
- Air Supply: 53 cfm at 60 – 90 psi
- Air Filtration: Maximum 5 micron air filter or finer required
- Air Inlet Port: 3/4″ NPT
- Air Supply Hose Minimum Size: 1/4-2 Tons — 1/2″; 3-6 Tons — 3/4″
OPERATION
- Pendant control
- Outstanding control for fine feathering movements using a spring-loaded multi-vane motor design
- Comfortable noise levels during use
- Lubrication free
- Unlimited duty cycle
MOTOR
- Spring-loaded multi-vane for fine feathering control
OPERATING CONDITIONS
- Temperature range +14° – 140°F
OPTIONS
- Custom lift or pendant length
- Canvas chain container

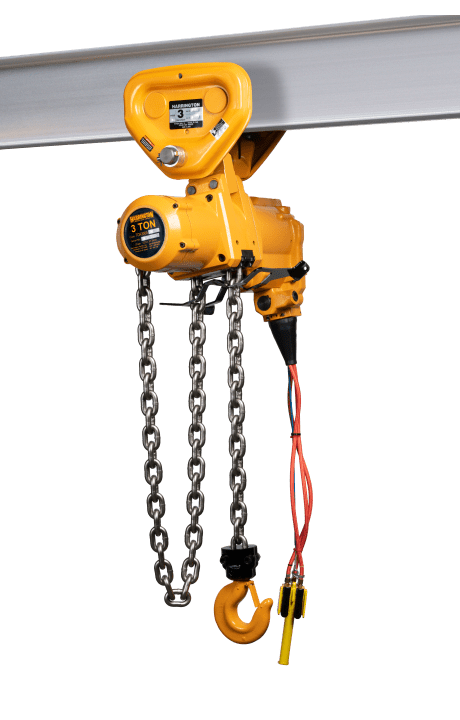

Air Power Meets Manual Power
Our TCKP trolley hoist is a combination of our TCK air powered hoist and our reliable PT push trolley. These trolley hoists can be used anywhere to easily move and transport loads.
FEATURES:
CAPACITY
- 3 & 6 Ton
BODY
- High-strength cast-iron housing stands up to the toughest demands
- Powder coated finish
- Proven weather resistant in harsh environments
LOAD CHAIN
- Nickel plated, corrosion-resistant chain
- Resistant to corrosion, abrasion and wear
AIR REQUIREMENTS
- Air Supply: 60 – 90 psi
- Air Filtration: Maximum 5 micron air filter or finer required
- Air Inlet Port: 1″ NPT
- Air Supply Hose: Minimum Size 3/4″
- Air Lubrication: Minimum 10 – 15 drops of oil per minute (0.2 – 0.3 cc/min.)
OPERATION
- Pendant and cord control
- Outstanding control for fine feathering movements using a spring-loaded multi-vane motor design
- Comfortable noise levels during use
BRAKE
- Fail-safe self-adjusting disc brake
- Protected from harsh environments
MOTOR
- Spring-loaded multi-vane
- Variable speed control
WHEELS
- All steel
- Sealed ball bearings
- Fit flat or tapered beam flange
SHAFTS
- Standard shafts fit wide range of beams
- Spacers for easy adjustments
OPERATING CONDITIONS
- Temperature range +14° – 140°F
OPTIONS
- Custom lift or pendant length
- Longer shafts available for larger beams
TCLP PUSH TROLLEY HOIST
Move and Lift in Clean Environments
Our TCLP lube free air hoists and PT push trolley combination provides protection from contaminating the environment with oil mist and is a reliable, economical way of moving the load.
FEATURES:
CAPACITY
- 1/4 – 6 Ton
LOAD CHAIN
- Nickel-plated resistant to corrosion, abrasion and wear
FEATURES 1/4 – 1 TON
- Extremely compact & lightweight
- Cast aluminum body allows for easy operation, transportation and storage
- External speed adjustment screw doesn’t need special tools to set specific speeds
- Adjustable lifting and lowering speeds increases production capabilities
- Heavy-duty disc motor brake system for reliable load support
FEATURES 3 – 6 TON
- Adjustable overload limiter detects overload automatically and blocks air flow for lifting
- Cast iron housing for strength and durability
- Powder coated finish proven weather resistant in harsh environments
- Internal disc brake protected from harsh environments
AIR REQUIREMENTS
- Air Supply: 60 – 90 psi
- Air Filtration: Maximum 5 micron air filter or finer required
- Air Inlet Port: 1/4-1 Tons — 1/2″ NPT; 3-6 Tons — 1″ NPT
- Air Supply Hose Minimum Size: 1/4-1 Tons — 1/2″; 3-6 Tons — 3/4″
OPERATION
- Pendant or cord control
- Outstanding control for fine feathering movements using a spring-loaded multi-vane motor design
- Comfortable noise levels during use
- Lubrication free
- Unlimited duty cycle
MOTOR
- Spring-loaded multi-vane for fine feathering control
WHEELS
- All steel
- Sealed ball bearings
- Fit flat or tapered beam flange
SHAFTS
- Standard shafts fit wide range of beams
- Spacers for easy adjustments
OPERATING CONDITIONS
- Temperature range +14° – 140°F
OPTIONS
- Custom lift or pendant length
- Canvas chain container
Small Yet Mighty
Our ET mini trolley is designed to proide travel ability for our ED series electric chain hoists and our AH Mini Cat air hoists. This little trolley allows for some of the lowest headroom in the industry!
FEATURES:
CAPACITY
- 525 lbs
BODY
- Frame is stamped steel with integrated drop stops
- Get strength and rigidity from a lightweight, compact design
WHEELS
- Composite material for quiet operation and reduced rolling resistance
BEARINGS
- Maintenance-free sealed bearings increase reliability and reduce required pull force
OPERATION
- Fits all ED series electric chain hoists up to 525 lbs
- Fits all AH Mini Cat air hoists
Geared Travel for Demanding Industrial Applications
Harrington’s TCKG is a combination of our world class TCK air hoist and our GT geared tolley. This pairing will certainly get you moving in the right direction.
FEATURES:
CAPACITY
- 3 & 6 Ton
BODY
- High-strength cast-iron housing stands up to the toughest demands
- Powder coated finish
- Proven weather resistant in harsh environments
CONTROLS
- Available with pendant or cord control
- Very fine feathering movements both up and down, even at low speeds
LOAD CHAIN
- Nickel plated, corrosion-resistant chain
- Resistant to abrasion, abrasion and wear
AIR REQUIREMENTS
- Air Supply: 60 – 90 psi
- Air Filtration: Maximum 5 micron air filter or finer required
- Air Inlet Port: 1″ NPT
- Air Supply Hose: Minimum Size 3/4″
- Air Lubrication: Minimum 10 – 15 drops of oil per minute (0.2 – 0.3 cc/min.)
OPERATION
- Pendant and cord control
- Outstanding control for fine feathering movements using a spring-loaded multi-vane motor design
- Comfortable noise levels during use
BRAKE
- Fail-safe Self-Adjusting Disc Brake
- Protected from harsh environments
MOTOR
- Spring-loaded multi-vane
- Variable speed control
WHEELS
- All steel
- Sealed ball bearings
- Fit flat or tapered beam flange
SHAFTS
- Shafts
- Standard shafts fit wide range of beams
- Longer shafts available for larger beams
- Spacers for easy adjustments
OPERATING CONDITIONS
- Temperature range +14° – 140°F
OPTIONS
- Custom lift or pendant length
